HS Indexing Chuck

Product Image

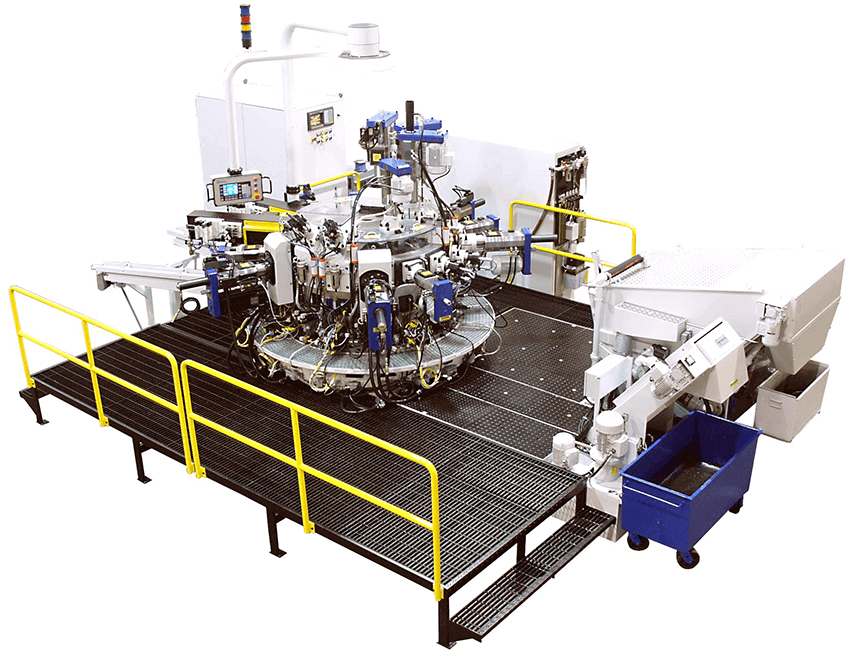

Hydromat HS Indexing Chuck Rotary Transfer Machine image

The HS Indexing Chuck machine combines precision chucks with the indexing accuracy and reliability of the Hirth ring.

Available in 12 or 16 station models, the HS is fully integrated into the Hydromat product family, so the same modular components used in Hydromat's rotary transfer models are fully compatible with the HS machine,

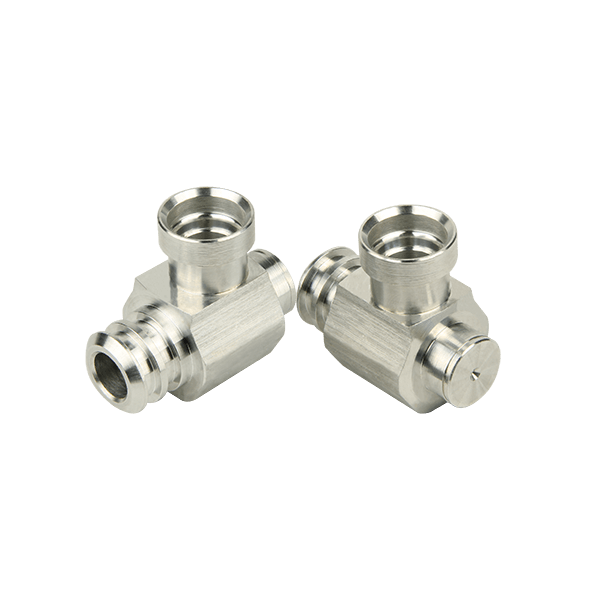

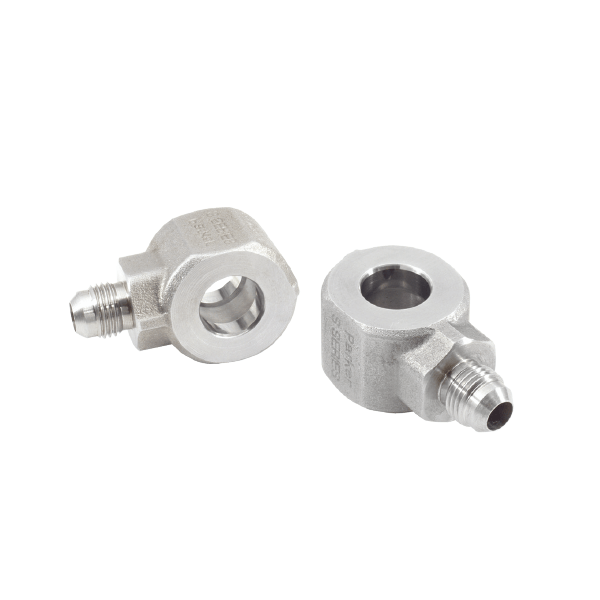

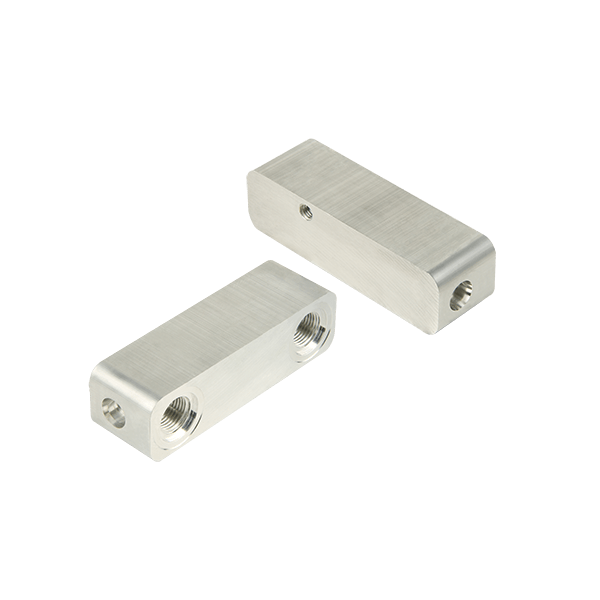

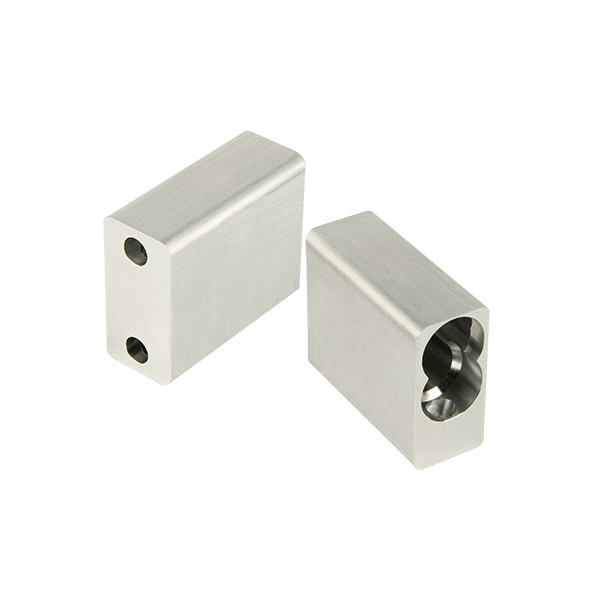

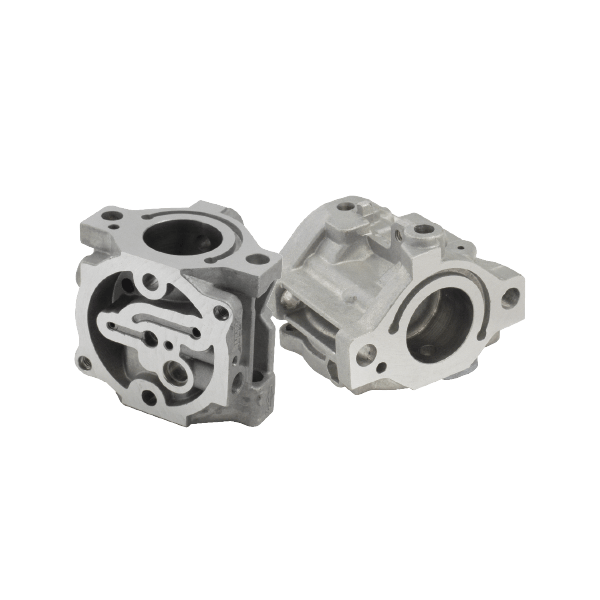

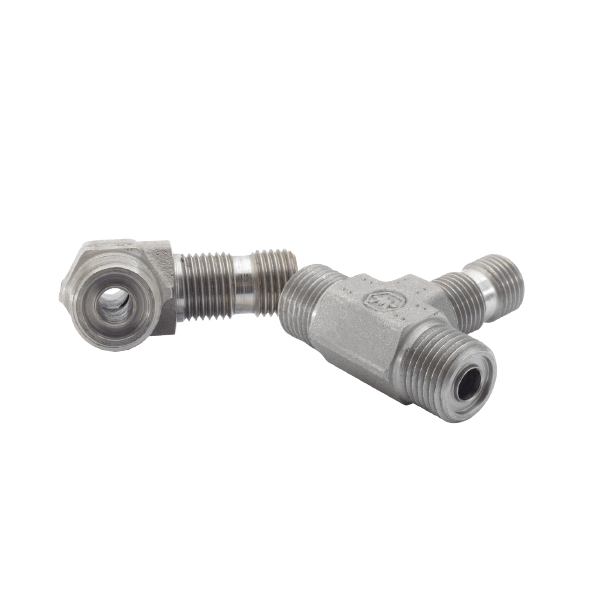

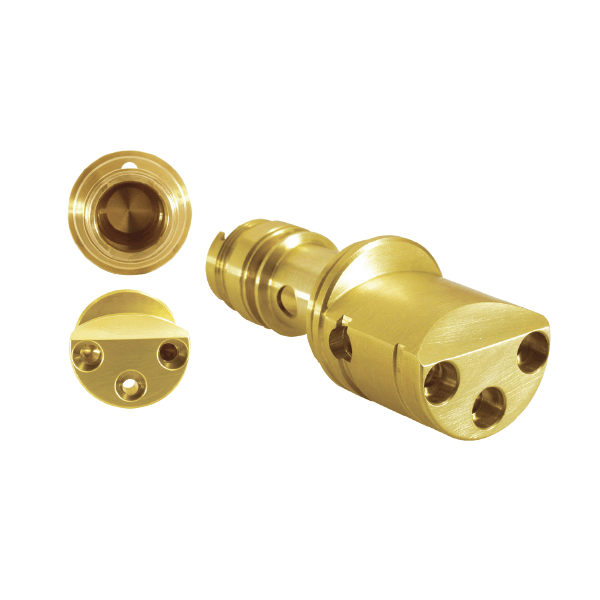

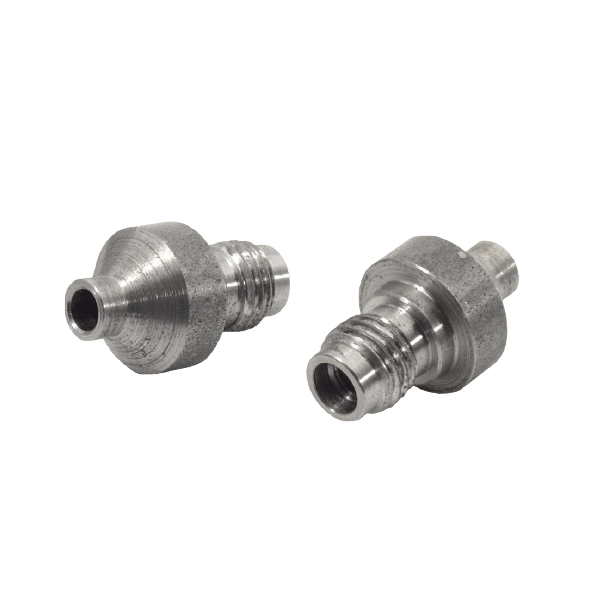

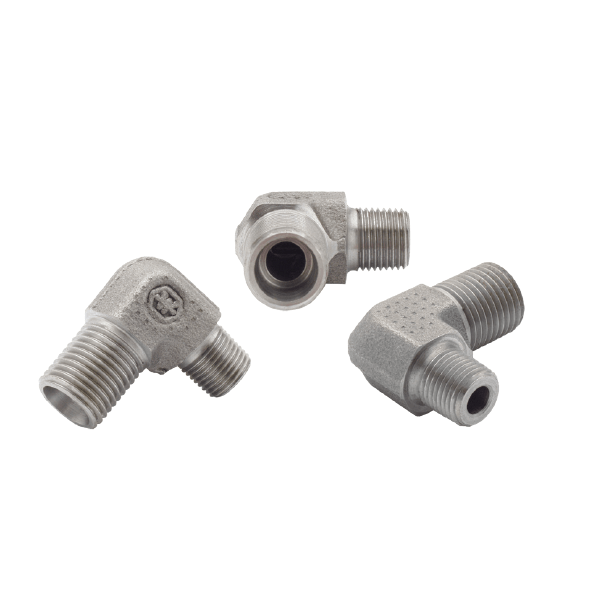

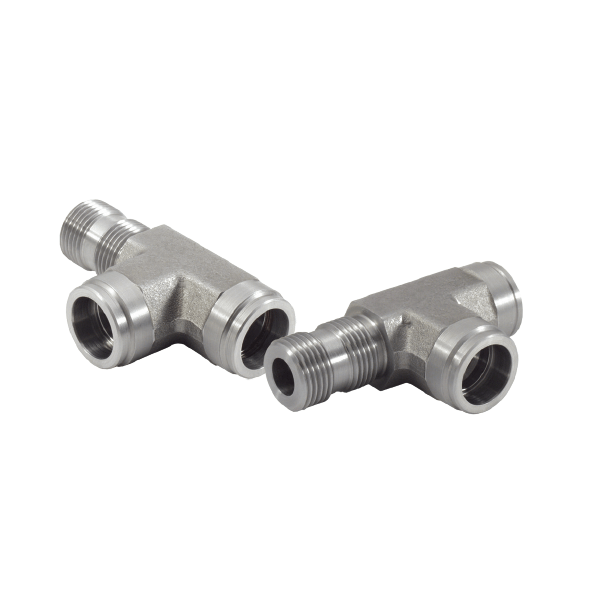

This system is ideal for mid-to-high volume precision production of non-standard shaped castings or forgings, and is designed with the flexibility to easily accommodate families of parts.

Features

  • Up to 16 horizontal & 8 machining stations
  • Eliminates secondary operations
  • Extreme accuracy and reliability of a Hirth ring
  • Several different unit sizes available
  • Coolant chiller optional
  • Multiple loading and chip system options

Hydromat Advantages Over Conventional Machining

  • Eliminates secondary operations
  • Extremely short remnants and thin cutoff for significant material saving
  • Reduces work in progress
  • Increased productivity due to bar change and quick changeover capabilities
  • Non-rotating bar stock provides quiet vibration free operation
  • Modular toolspindles with quick-change presettable heads for easy changeovers
  • Easily adapted for vertical machining requirements - up to 6 stations
  • Easily accessible operating controls and machine adjustments
  • Coolant and chips contained in the tooling area away from motors and controls
  • Precision table indexing and repeatability ensures accuracy with SPC to 2.0 CpK
  • Inverting unit repositions part for complete end to end machining

Technical Specification Table

HS 12 - 4" Cube

Max Stock Size
Blank Round Length Hor. Station Vert. Station Index Time Weight LBS Machine Power Size Unit Options
4" Cube 1 3/4" 8" 12 6 1.2 sec. 18,500 53HP (Avg) 20/80
26/80
35/60
36/100
45/80
46/120
50/100

HS 16 - 3" Cube

Max Stock Size
Blank Round Length Hor. Station Vert. Station Index Time Weight LBS Machine Power Size Unit
3" Cube 1 3/4" 8" 16 8 1.0 sec. 20,000 60HP (Avg) 20/80
26/80
35/60
36/100
45/80
46/120
50/100
