Witzig & Frank TriFlex 5X by Hydromat

Witzig & Frank TriFlex 5X by Hydromat

Multistation 5-Axis Machining Center

TriFlex 5x Machine Design and Mechanical Highlights
TriFlex 5X Machine Design & Mechanical Highlights

The TriFlex 5X with its horizontal workstation setup allows precise machining jobs with the highest output just-in-time. The newly designed machine is based on the original TRIFLEX concept developed in the early 2000s and enhances its strengths by adding features of current single and dual spindle machining centers.

TriFlex 5X Advantages

Flexibility • Productivity • Quality • Cost Per Part

  • Complete Machining
  • Mass Production
  • Single Machine
  • Five Sided Machining
  • Five Stations
  • Single Setup
  • 5-Axis Machining


  • Loading & Unloading Station
  • 6 Stations with 3-Axis Modules
  • Central Rotating Unit for Workpiece Transfer
  • 6x A/B - Axis with Torque Drive for Fully Flexible 5-Axis Machining
  • 8-Fold Tool Turret
  • CNC Control: FANUC 31i

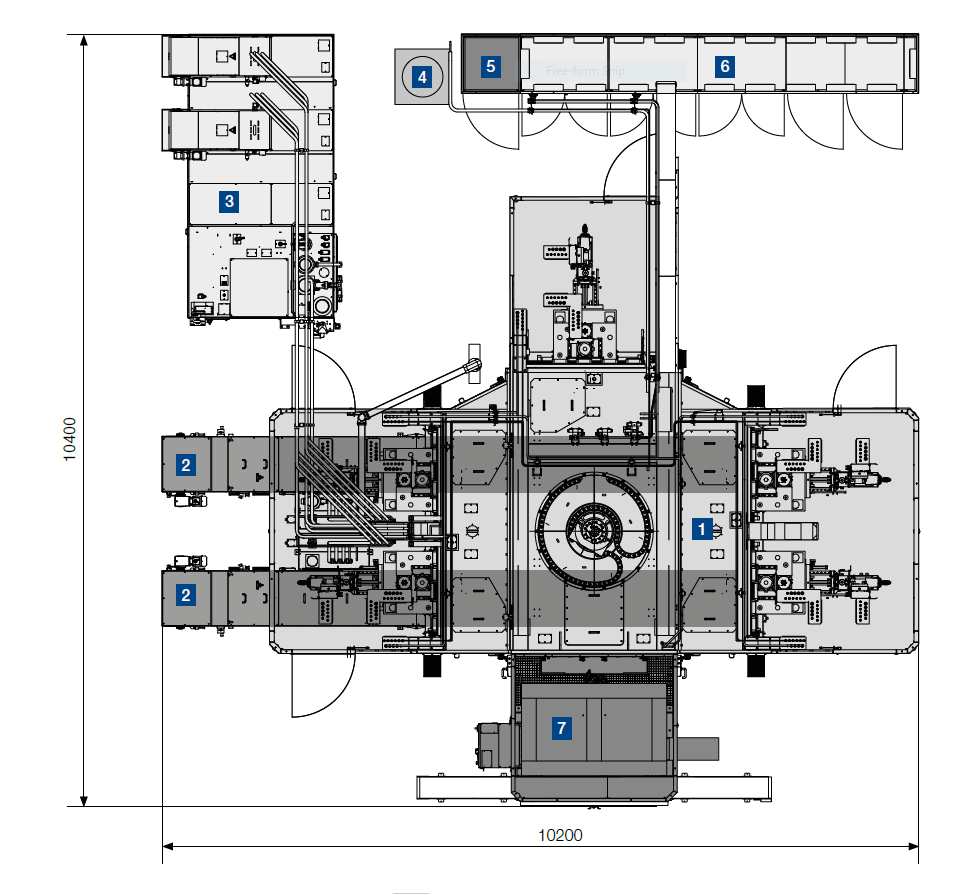

Floorplan TriFlex 5xFloor Plan
