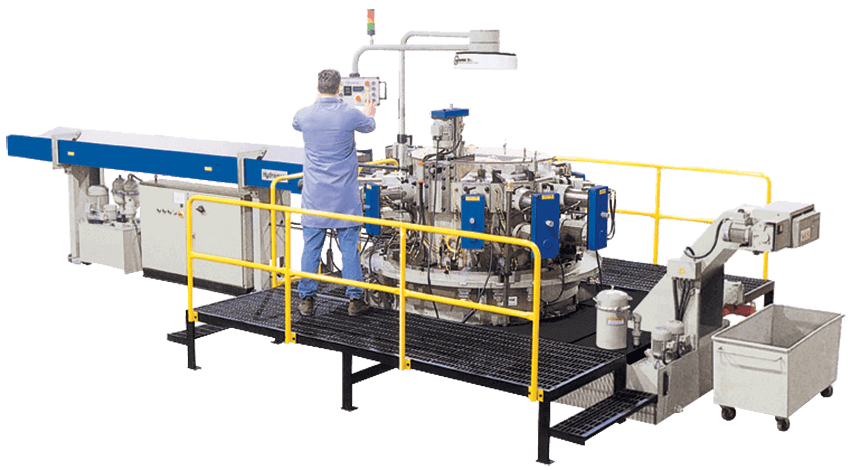

The HB 45-12 rotary transfer machine is a modular system consisting of up to 12 horizontal and 6 vertical toolspindle units rigidly mounted around a precision cast-iron ring. This arrangement has the capability of providing tremendous versatility and flexibility in a turn-key machining solution.
With 1-3/4" capacity, the HB 45-12 machine is ideally suited to produce parts from bar stock or blanks up to 6" in length.
Consistent high production & precise machining, combined with the elimination of costly secondary operations make the HB 45-12 machine an outstanding solution for cost-effective manufacturing.
Features
- Up to 12 horizontal & 6 machining stations
- Eliminates secondary operations
- Extreme accuracy and reliability of a Hirth ring
- Several different unit sizes available
- Coolant chiller optional
- Multiple loading and chip system options
Hydromat Advantages Over Conventional Machining
- Eliminates secondary operations
- Extremely short remnants and thin cutoff for significant material saving
- Reduces work in progress
- Increased productivity due to bar change and quick changeover capabilities
- Non-rotating bar stock provides quiet vibration free operation
- Modular tool spindles quick-change presettable heads for easy changeovers
- Easily adapted for vertical machining requirements - up to 6 stations
- Easily accessible operating controls and machine adjustments
- Coolant and chips contained in the tooling area away from motors and controls
- Precision table indexing and repeatability ensures accuracy with SPC to 2.0 CpK
- Inverting unit repositions part for complete end to end machining
Technical Specification Table
Max Stock Size | ||||||||
---|---|---|---|---|---|---|---|---|
Rnd | Hex | Sq | Hor. Station | Vert. Station | Index Time | Weight LBS | Machine Power | Size Unit Options |
1 3/4" | 1 1/2" | 1 1/4" | 12 | 6 | 0.700 sec | 15,000 | 43HP (Avg) | 20/80 26/80 35/60 36/100 45/80 46/120 50/100 |
